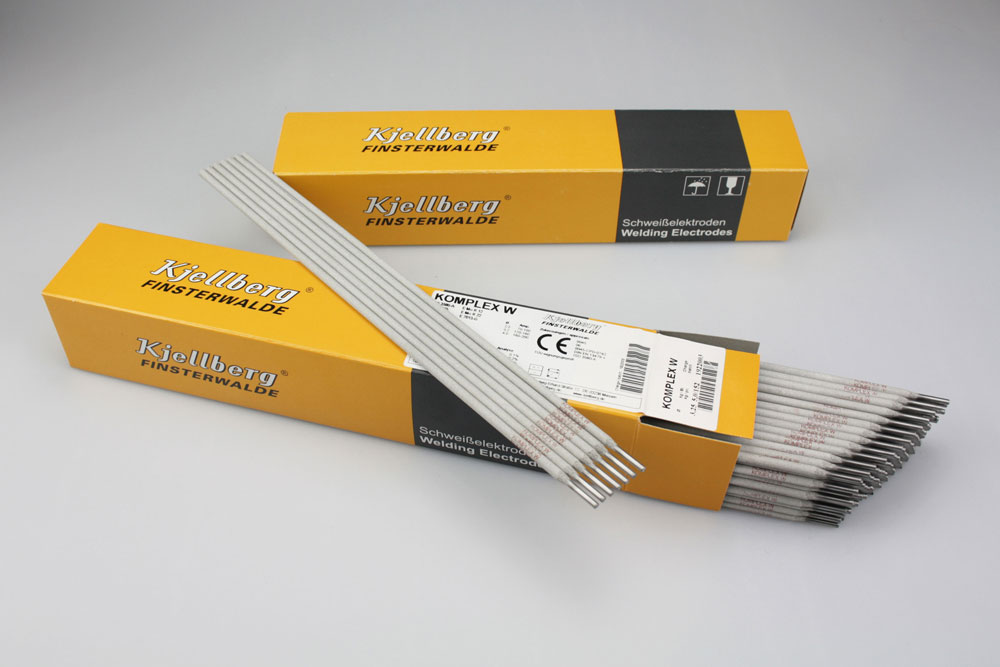

KOMPLEX W
With a molybdenum content of 0.4 % the electrode Komplex W is especially suited for steel 16Mo3 in boiler, container and pipeline construction. It provides a smooth, finely rippled and notch-free seam surface. This stick electrode is very well suited for root welding.
Standards:
| DIN EN ISO 3580-A | E Mo R 12 |
| AWS A 5.5 | E 7013-G |
| Construction steel | S235 to S355 |
| Ship steel | A32/36, D32/36, A40, D40 |
| Fine-Grained steel | S275 to S355 |
| Pressure tank steel | P195 to P355, 16Mo 3 |
| Pipe steel | L210 to L360 |
| Cast steel | GP240, G20Mo5 |
| Type of current | AC DC negative pole |
|||
| Diameter | 2.5 mm 3.25 mm |
|||
| Weld Metal Composition | C | Si | Mn | Mo |
| 0.1 % | 0.2 % | 0.5 % | 0.4 % | |
